DESCRIPTIONS
The IP1117 is a series of low dropout voltage regula-tors which can provide up to 1.0A of output current.
The IP1117 is available in four fixed voltages,1.8V,2.5V,3.3V and 5.0V. In addition, it is also avail-able in adjustable version.
On chip precision trimming adjusts the reference/output voltage to within ¡¾2%.
Current limit is also trimmed to ensure specified out-put current and controlled short-circuit current.

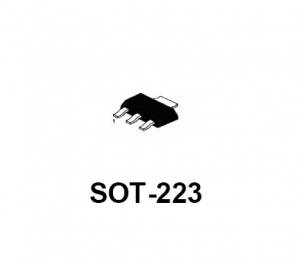

The IP1117 series is available in SOT-223 power packages
FEATURES
Adjustable and Fixed of 1.8V, 2.5V, 3.3V,5.0V
Space saving SMD types of SOT-223
1.0A Output Current capability
1.1V drop-out voltage
Foldback current limiting
hermal protection
Over current protection
ORDERING INFORMATION
|
Device |
Package |
Operating Temp |
|
IP1117/1P1117L |
SOT-223 |
-35¢ªC ~ +125¢ªC |
|
;IP1117-18/1P1117L-18 |
SOT-223 |
-35¢ªC ~ +125¢ªC |
|
IP1117-25/1P1117L-25 |
SOT-223 |
-35¢ªC ~ +125¢ªC |
|
;IP1117-33/1P1117L-33 |
SOT-223 |
-35¢ªC ~ +125¢ªC |
|
IP1117-50/1P1117L-50 |
SOT-223 |
-35¢ªC ~ +125¢ªC |
 |
